Understanding Dielectric Breakdown Voltage in Electrical Insulation Systems

Why Dielectric Breakdown Voltage Matters

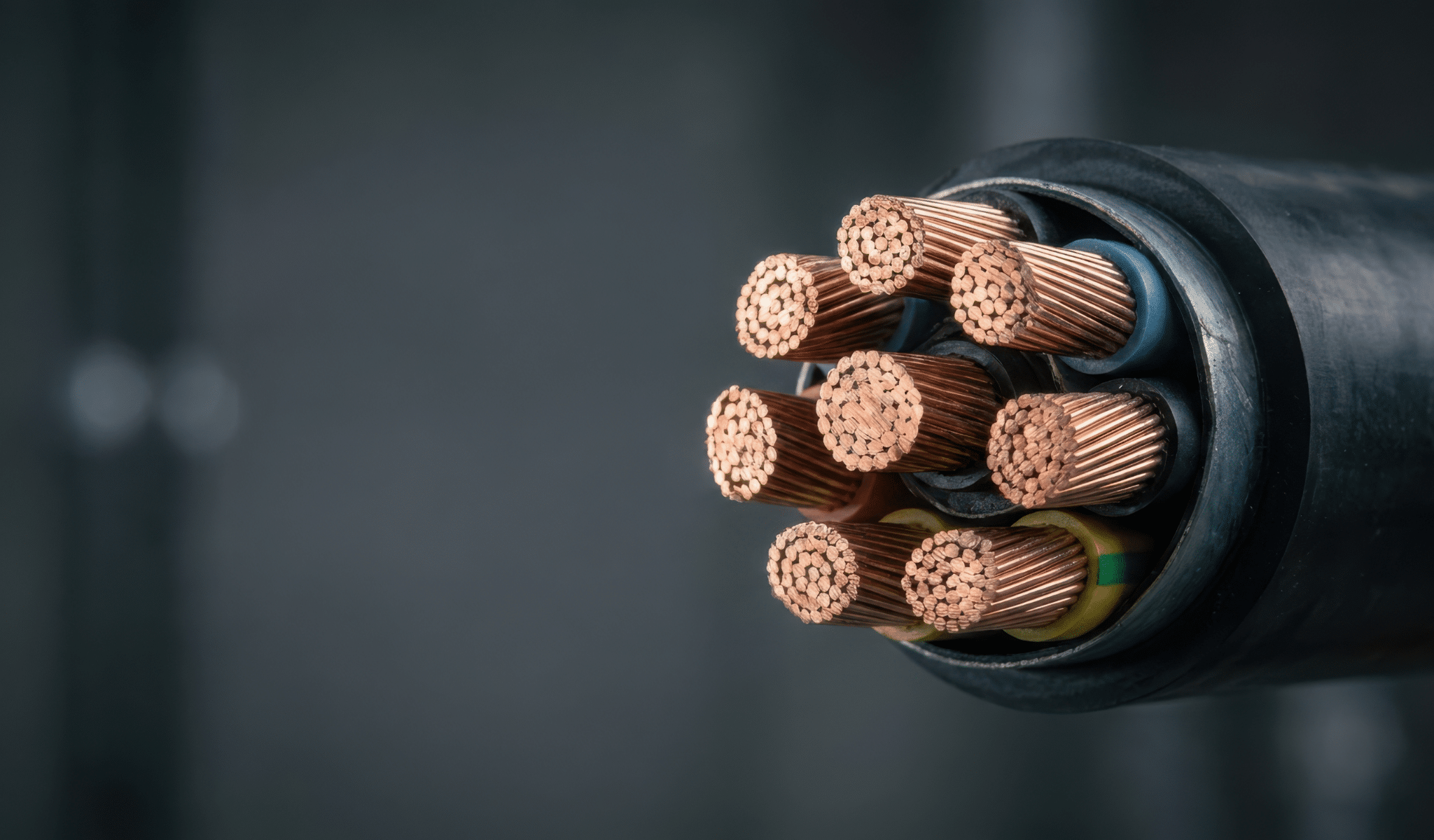

Insulation in electrical and industrial equipment is expected to prevent current from reaching unintended paths. But every insulating material has a voltage limit.

Dielectric breakdown happens when an electrical insulating material can no longer withstand the applied electric field and an electrical path forms through or across the insulation.

Dielectric breakdown voltage is an important parameter for evaluating insulation performance, particularly in equipment exposed to high electrical stress.

Breakdown voltage should not be considered in isolation. Material thickness, temperature, electrode configuration, defects, moisture, frequency, and test conditions can influence the measured result.

What Is Dielectric Breakdown?

Dielectric breakdown happens when an insulating material can no longer withstand the electric field applied across it and starts to conduct electricity. Usually, an electrical insulator restricts the movement of charged particles, preventing current from passing between conductors. As the applied voltage increases, however, the electric field within the insulation also becomes stronger. If the field reaches a critical level, localized electrical stresses can cause the material’s insulating structure to fail, creating a conductive path through the insulation. This can result in dielectric breakdown.

The voltage at which this occurs is not a universal property of the material alone; it can change depending on factors such as insulation thickness, electrode geometry, temperature, frequency, defects, and the surrounding environment.

Dielectric Breakdown Voltage vs. Dielectric Strength

Dielectric Breakdown Voltage

The actual voltage at which a particular test specimen experiences electrical breakdown under specified test conditions.

Dielectric Strength

The breakdown voltage expressed relative to the material thickness, commonly represented as:

Dielectric strength = Breakdown voltage ÷ insulation thickness

A thicker insulation layer does not necessarily produce a proportionally higher breakdown voltage because electric-field distribution, material defects, interfaces, and test geometry also matter.

What Causes Dielectric Breakdown in Electrical Insulation?

Material defects

Voids, cracks, inclusions, delamination, and manufacturing imperfections can create areas of concentrated electrical stress.

Moisture and contamination

Water, dust, chemicals, and other contaminants can alter surface behavior and reduce insulation reliability.

Temperature

Elevated temperatures can change the electrical and mechanical properties of an insulating material. Thermal aging can also progressively weaken insulation.

Thickness and geometry

Thin sections, sharp edges, small radii, and poorly designed interfaces can produce higher local electric-field concentrations.

Electrical stress and frequency

The applied waveform and frequency influence how insulation responds to electrical stress.

Dielectric breakdown is generally the result of interacting electrical, thermal, mechanical, and environmental conditions.

What Is Dielectric Breakdown Testing?

Dielectric breakdown testing is a controlled method for determining how much electrical stress an insulating material can withstand.

The basic process involves:

1. A prepared insulation specimen is positioned between electrodes.
2. A specified voltage is applied.
3. The voltage is increased according to the selected test procedure.
4. The test continues until electrical breakdown occurs.
5. The voltage at failure is recorded.
6. Results from multiple specimens can be evaluated to understand material performance and variation.

ASTM D149 identifies several voltage-application approaches, including short-time, step-by-step, and slow-rate-of-rise methods. The standard is intended for solid insulating materials at commercial power frequencies under specified conditions.

How a Dielectric Breakdown Test Is Conducted

The important test variables are

• Test specimen dimensions and thickness
• Electrode shape and configuration
• Applied voltage and frequency
• Temperature
• Surrounding medium
• Voltage rise rate
• Failure detection criteria
• Number of specimens tested

Standardized procedures are important because changing the test conditions can change the measured breakdown value.

ASTM D149 specifically states that the test can be performed at different temperatures and in suitable gaseous or liquid surrounding media. It also covers both puncture through the specimen and flashover along an interface.

Why Mica Is Used in High-Performance Electrical Insulation

Transition naturally from testing principles to mica-based insulation.

Mica is used in electrical insulation applications where a combination of electrical insulation performance and thermal capability is required.

Mica electrical insulation sheets can be used in applications where insulation must withstand elevated operating temperatures and electrical stress.

Mica sheets can serve as barriers, liners, spacers, and other insulation components depending on their construction and application.

Selecting Mica Insulation for Electrical Applications

Choosing an insulation material requires more than looking at a headline dielectric-strength number.

• Operating voltage decides how much electrical stress the insulation must withstand during normal use, including possible transient overvoltages.
• Operating temperature is also key because prolonged exposure to high temperatures can accelerate aging and affect the material’s electrical and mechanical properties.
• Insulation thickness influences voltage withstand capability, although a thicker material does not necessarily provide a proportional increase in breakdown voltage.
• The insulation must also meet the application’s mechanical requirements. Including resistance to vibration, compression, bending, and dimensional changes.
• Consistent manufacturing tolerances are important because variations in thickness, surface quality, voids, or other defects can create areas of concentrated electrical stress.

Finally, the insulation should be evaluated according to the applicable electrical standards. It provides standardized methods for measuring properties such as dielectric breakdown voltage and dielectric strength. Together, these factors help engineers select an insulation system that is suitable for the actual electrical, thermal, mechanical, environmental, and service conditions of the application.

How Test Results Are Used in Insulation Design

Manufacturers and engineers use breakdown data.

Potential applications include:

• Comparing insulation materials
• Quality-control testing
• Detecting manufacturing variation
• Evaluating material aging
• Supporting component qualification
• Establishing appropriate insulation margins

Be careful not to imply that a single dielectric breakdown test automatically proves that an insulation system is safe for a particular application.

ASTM cautions that test results generally cannot be used directly to predict dielectric behavior in an actual application and may need to be evaluated alongside other functional tests and material comparisons.

Conclusion: Designing More Reliable Electrical Insulation Systems

Understanding dielectric breakdown voltage is essential when evaluating electrical insulation, but the number only has meaning when the testing conditions and application requirements are understood.

• Dielectric breakdown represents failure under electrical stress.

• A standardized dielectric breakdown test provides controlled data for material evaluation.
• Material selection must consider electrical, thermal, mechanical, environmental, and application-specific requirements.

High-performance insulation materials, including high-temperature mica sheet, as part of a broader insulation strategy rather than presented as a universal solution.
